Ready for shipping, delivery in 48h

HANTECH 9000 BTU 2,6 kW Split air conditioner WLAN R32 Mod. HPRO 3m pipe + bracket

HANTECH split air conditioner 9000 BTU: Top brand product with inverter technology, UV disinfection, R32 refrigerant and environmentally friendly functions for a pleasant indoor climate.

RRP EUR 440.34
EUR 335.20 *
Content 1 piece
Item bundle content:
1 x

* Excl. VAT excl. Shipping

HANTECH 9000 BTU 2,6 kW Split air conditioner WLAN R32 Mod. HPRO 3m pipe + bracket

HANTECH Split air conditioner 9000 BTU 2,6 kW

HANTECH SPLIT KLIMAANLAGE
TOP BRAND PRODUCT

Pre-filled with R32 for approx. ∼3m pipe length. 230V household voltage near the outdoor unit is required for operation. The indoor unit is supplied with power from the outdoor unit via an electric cable. Thanks to the latest inverter technology with precise speed adjustment at low power consumption and permanent room temperature monitoring, a pleasant, even climate is guaranteed. Evacuation of the pipes by an air-conditioning technician is mandatory for long-term trouble-free operation.

9,000 BTU

  • Room size
    up to 26m²
  • Interior dimensions
    790×275×192mm

Technical data

<<< 9.000 - 24.000 BTU overview >>>

ACCORDING TO EU REGULATION 626/2011

HNT-09-HRO

HNT-12-HRO

HNT-18-HRO

HNT-24-HRO

Technical data
BTU
9000
12000
18000
24000
Design load cooling mode
2.6 kW
3.4 kW
5.1 kW
6.8 kW
Design load heating mode
2.1 kW
2.4 kW
3.8 kW
5.7 kW
Energy efficiency class cooling
A
++
A
++
A
++
A
++
Energy efficiency class heating
A
+
A
+
A
+
A
+
Coefficient of performance in cooling mode (SEER)
6,3
6,1
6,1
6,5
Coefficient of performance in cooling mode (SCOP)
4,0
4,0
4,0
4,0
Cooling power consumption
144 kWh/year 1*)
195 kWh/year 1*)
293 kWh/year 1*)
366 kWh/year 1*)
Electricity consumption heating
735 kWh/year 1*)
840 kWh/year 1*)
1330 kWh/year 1*)
1995 kWh/year 1*)
Heating period (medium)
up to -10°C
to -10°C
to -10°C
to -10°C
Sound power level
max.60db(A)re1 pW
max.60db(A)re1 pW
max.60db(A)re1 pW
max.60db(A)re1 pW
Circuit
Refrigerant (GWP)
R32 (675) 2*)
R32 (675) 2*)
R32 (675) 2* )
R32 (675) 2* )
Connections / Thread
1/4" 3/8"
1/4" 3/8"
1/4" 3/8"
1/4" 1/2"
Sound pressure
Indoor
from 19 db(A)
from 19 db(A)
from 22 db(A)
from 24 db(A)
Outdoor
from 50 db(A)
from 50 db(A)
from 50 db(A)
from 50 db(A)
Consumption
Power supply
220-240V~/50Hz/1P
220-240V~/50Hz/1P
220-240V~/50Hz/1P
220-240V~/50Hz/1P
Power consumption cooling
240-1380 watts
290-1500 watts
330-2350 watts
410-2800 Watt
Power consumption heating
240-1550 Watt
290-1730 watts
330-2350 watts
420-3000 Watt
Product dimensions
Dimensions inside WxHxD
790×275×192 mm
790×275×192 mm
920×306×195 mm
1100×333×222 mm
Dimensions outside WxHxD
712×459×276 mm
712×459×276 mm
853×602×349 mm
920×699×380 mm
Weight inside
8 kg
8 kg
11 kg
14 kg
Weight outside
22 kg
22 kg
35 kg
40 kg

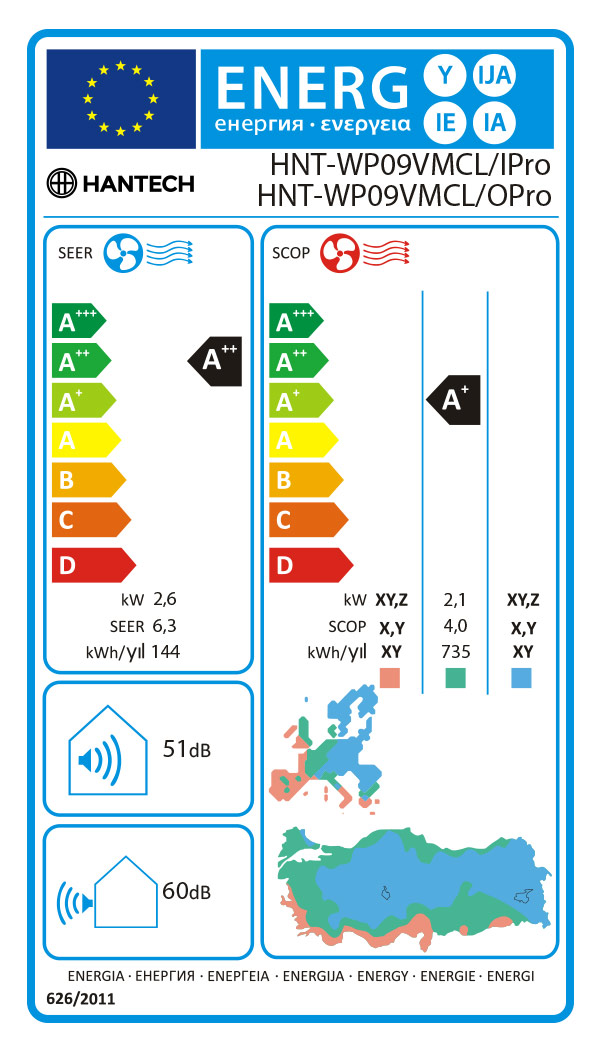

Energy label
HANTECH Energielabel
HANTECH Energielabel
HANTECH Energielabel
HANTECH Energielabel

1*) Energy consumption per year (kWh/year). Based on standard test results. Actual consumption depends on usage and location of the unit. 2*) Refrigerant leakage contributes to climate change. Refrigerants with lower global warming potential (GWP) contribute less to global warming in case of leakage than those with higher GWP. This unit contains refrigerant with a GWP equal to 675. Thus, a leakage of 1 kg of this refrigerant would have 675 times greater impact on global warming than 1 kg of CO2, based on one hundred years. Do not carry out any work on the refrigerant circuit or disassemble the unit - always consult qualified personnel.

HANTECH FEATURES

GOLD COATING

HANTECH SPLIT KLIMAANLAGE

The HANTECH™ nano-titanium oxide gold coating on the partitioned evaporator coating is self-cleaning, inhibits bacterial growth and provides improved corrosion resistance, keeping the energy yield virtually identical even after 8 years. Organic pollutants are broken down and odours neutralised.

WLAN

HANTECH SPLIT KLIMAANLAGE

APP control

Comfortably operate the air conditioner with all available functions and settings while on the move. For example, you can pre-cool the rooms a few minutes before arrival in order to arrive in a pleasantly tempered room. The control, in addition to the infrared remote control, is also possible via the home W-Lan network without using the Internet.

New design

HANTECH DESIGNHANTECH DESIGNHANTECH DESIGNHANTECH DESIGN

MODI

HANTECH SPLIT KLIMAANLAGE

Turbo Mode

Highest performance and air circulation shorten the time to the desired temperature

Supersilence

Minimal fan noise ensures whisper-quiet operation and idyllic nights

Self-cleaning

HANTECH SPLIT KLIMAANLAGE

Special features

HANTECH SPLIT KLIMAANLAGE

I-FEEL

Hantech Features

Temperature is measured at the remote control

TIMER

Hantech Features

Switch timer 24h on and off

HEALTH

Hantech Features

Ionisation of room air

SLEEP

Hantech Features

Prevents cooling during the night

MILDEW

Hantech Features

Drying prevents bacterial growth

8°C HEAT

Hantech Features

Frost protection - rooms always remain above 8°C

DISPLAY

Hantech Features

LED display can be switched off if required

Installation

HANTECH SPLIT KLIMAANLAGE

FUTURE-PROOF, ECOLOGICAL

R32

R32 Kältemittel by HANTECH

Why change to R32 ?

According to EU regulation CE 517 2014, R410A is being phased out and replaced by non-fluorinated gases (F-gases) such as R32 for environmental reasons. Smaller quantities are required, can be recycled and reused more easily.

Environmentally friendly

Positive effect is no impact on ozone layer and reduced global warming phenomenon. There will be a transition period for R410A from 2017 - from 2025 import will be banned for equipment with charge <3kg. As a simple refrigerant, not a compound, R32 can be easily recycled and reused. Thus it is environmentally friendly

Advantages over R410A

  • ∼70% less nefarious potential
  • 0% ozone impact
  • Future-proof
  • Less impact on global warming

Future vision

Nowadays, protecting the environment is one of the most important challenges of society. Both end users and manufacturers are doing their best to protect the environment as they can. As one of the pioneers of air conditioning manufacturing, HANTECH is committed to R32.

Effort for air conditioning engineers

As R32 is no extra cost and is as easy to install as R410A, there will be no extra costs. On the contrary, R32 is cheaper because less of the medium is needed for the same cooling capacity.

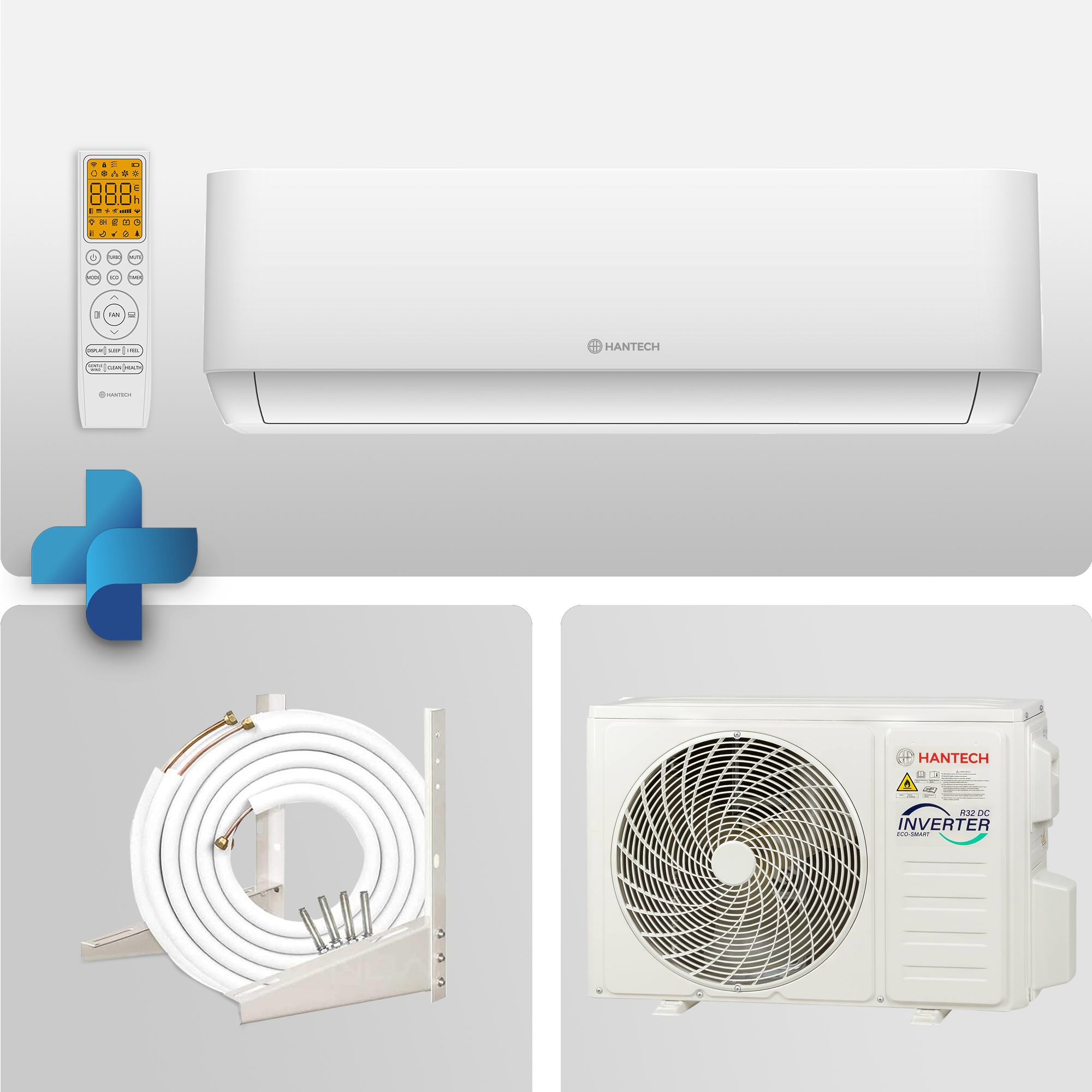

Scope of delivery

HANTECH HPRO 2023

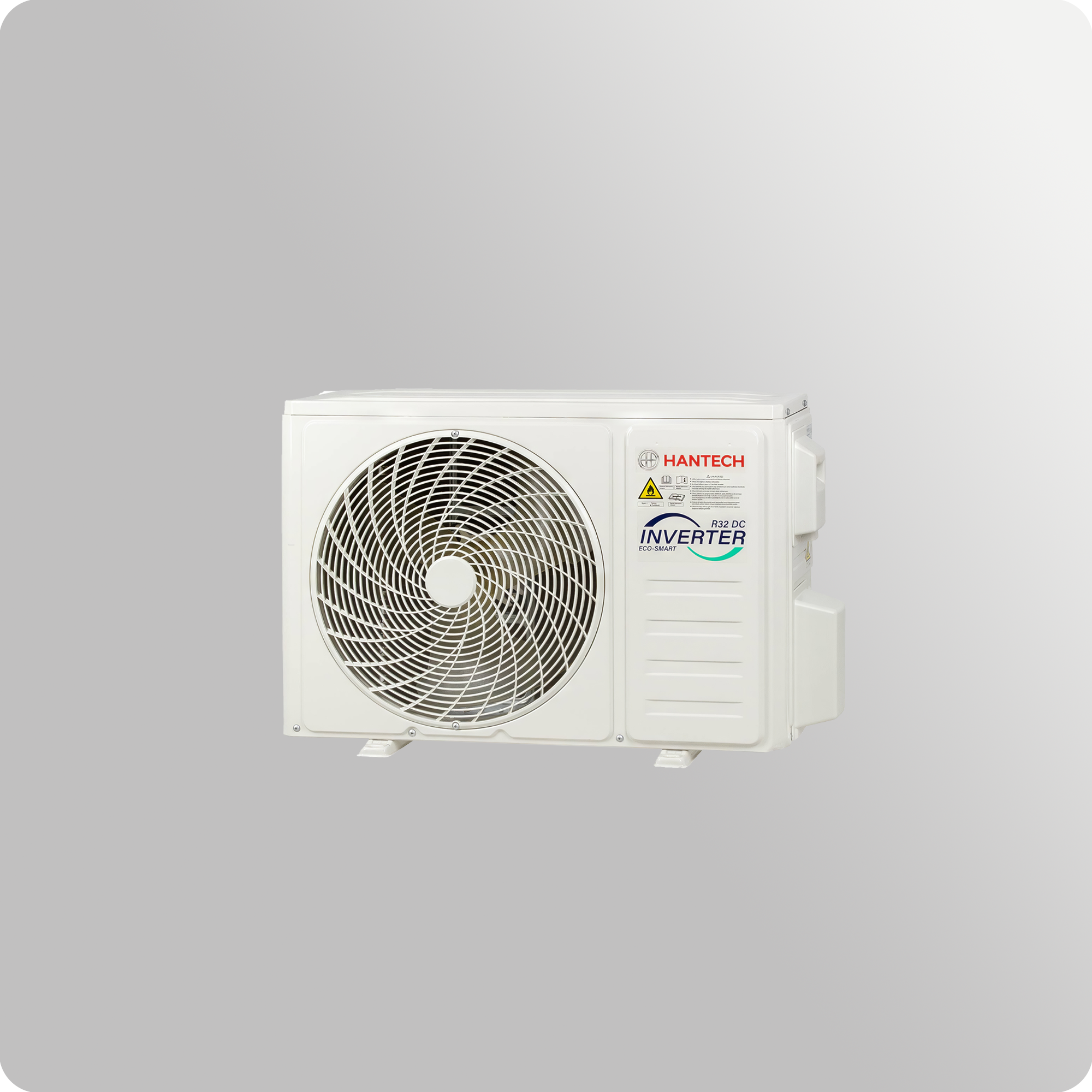

  • Outdoor unit HANTECH H-PRO MODEL

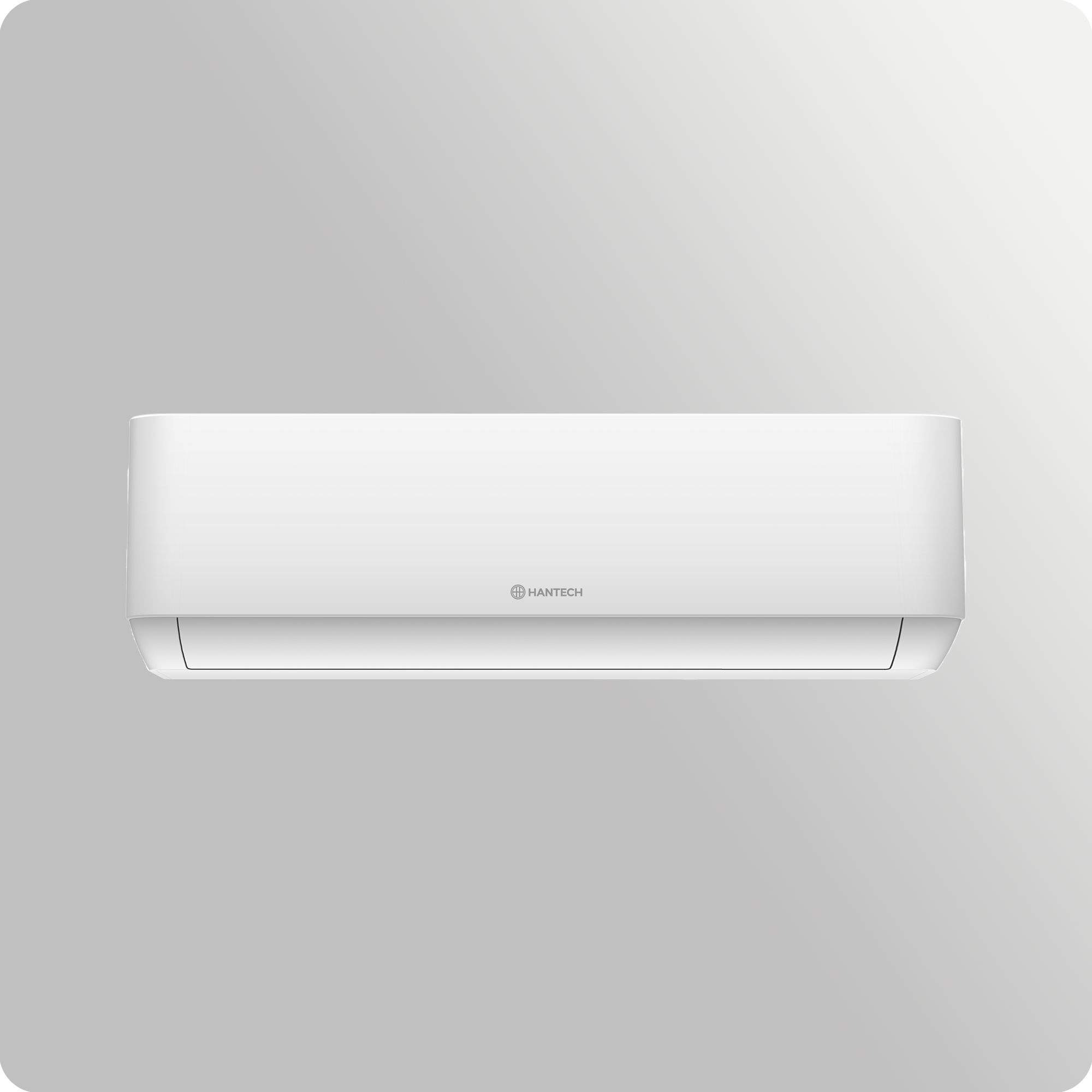

  • Indoor unit HANTECH H-PRO MODEL
  • 4x vibration dampers / rubber buffers for outdoor unit
  • El. connection cable 3m

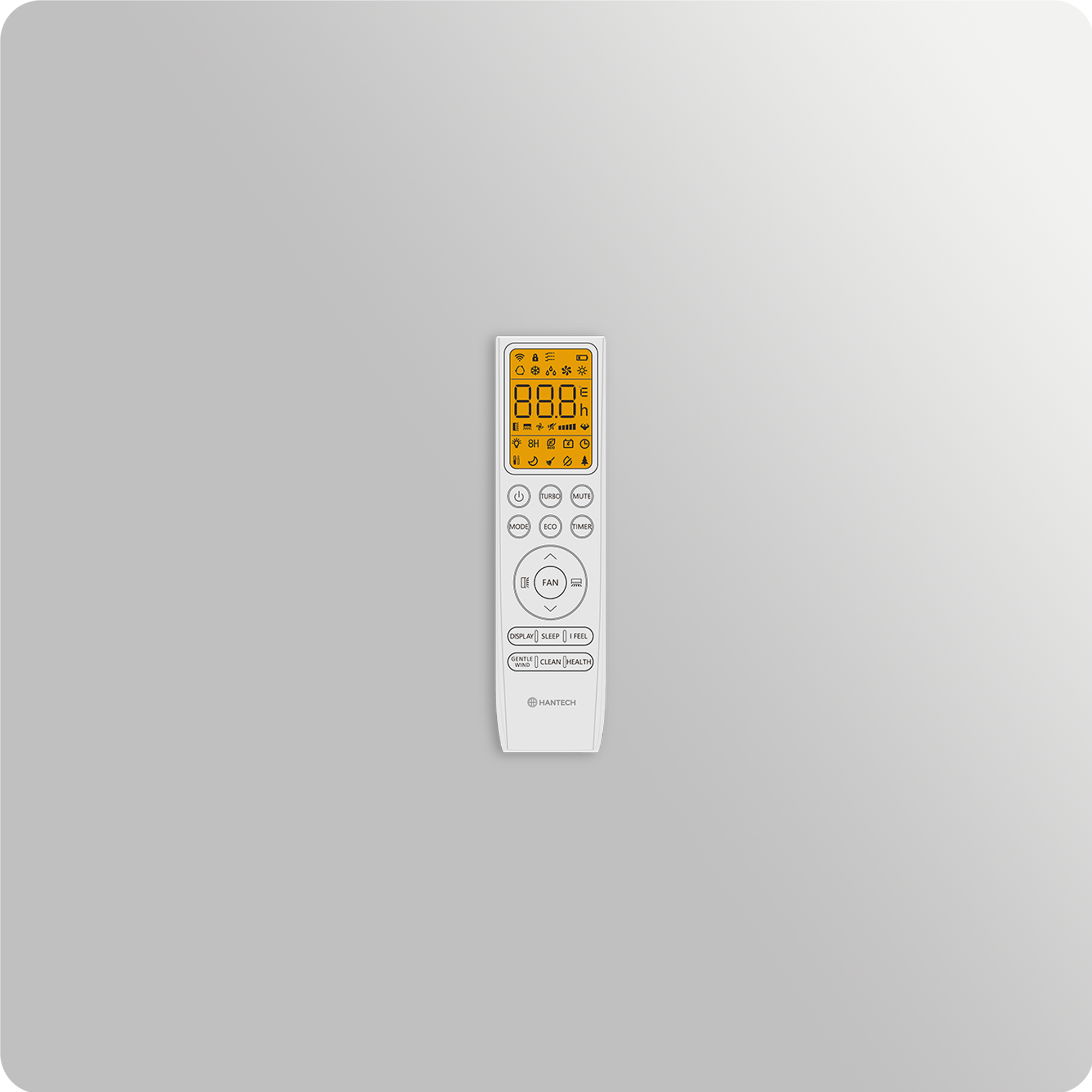

  • Remote control
  • Condensation water hose

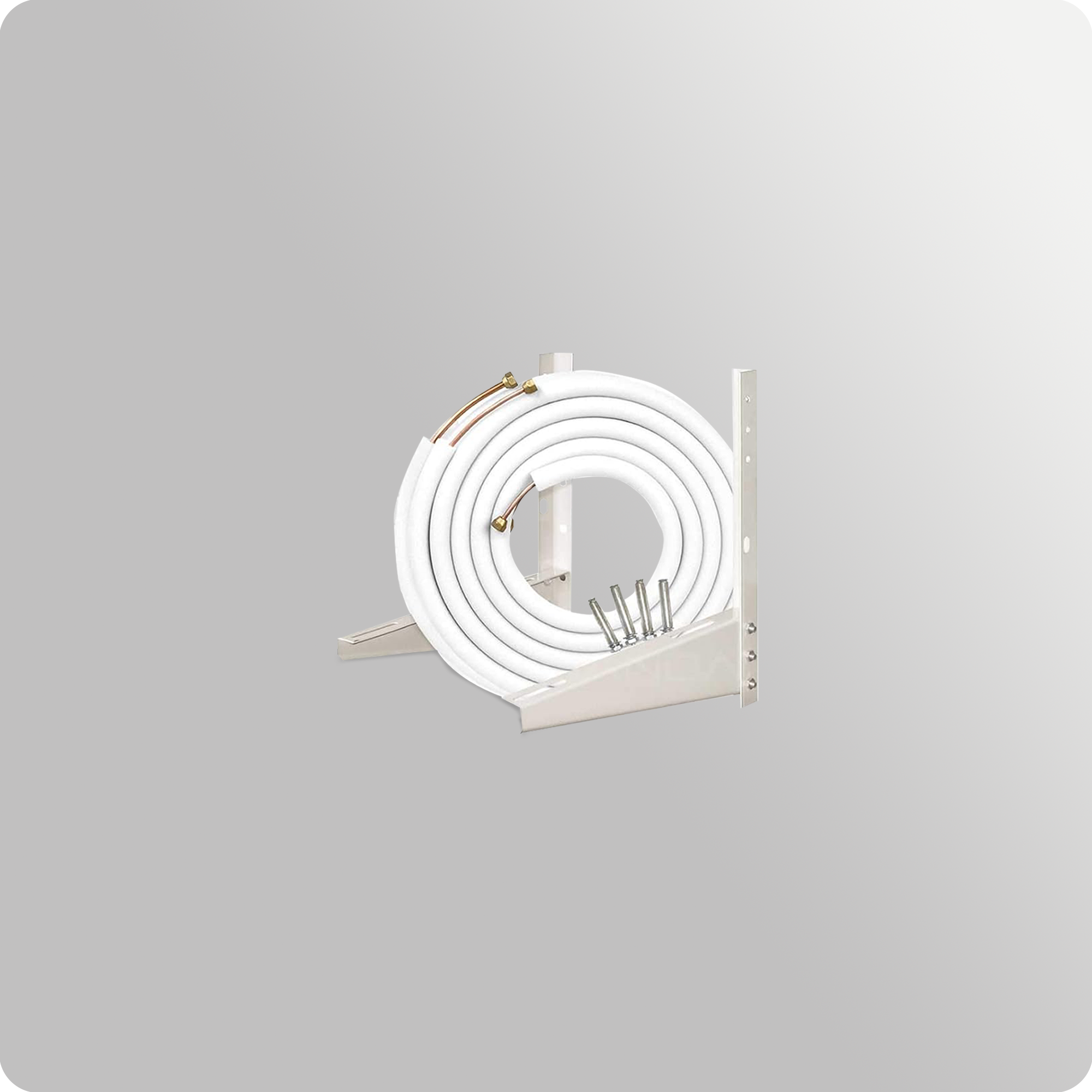

  • 1x copper pipe 1/4 3m
  • 1x copper pipe 3/8 3m
  • Outdoor unit prefilled for up to 3m pipe length

Product video

Features

Watch on YouTube:

https://youtu.be/9aaS4CqJHwc

Assembly

Watch on YouTube:

https://youtu.be/2wR52UH4maw
Manufacturer HANTECH
Model SET HPro 09 wht 3m
Item ID 1988
Condition New
Variation ID HNT-WP09VMCL-3m
Content 1 piece
Weight 40900 g
Net weight 33400 g
Customs tariff number 84151090
